Category X-Large Short - Size from 1.18" to 4.57"
Products Nav > Categories > X-Large Short
FIXED LENGHT [Sizes in Inches]:
1 Bellows: L Min 2.95” L Max 21.65”
MODULAR LENGTH [Sizes in Inches]:
2 Bellows Joined: L Min 5.90” L Max 43.30”
3 Bellows Joined: L Min 8.85” L Max 64.95”
And so on (4 Bellows, 5 Bellows...)
MODULAR CONNECTOR SIZE Ø:
DRILL COLLAR’S HOLES FROM 1.18" TO 4.57" AS YOU NEED (0.05 "- 0.08" less than the needed diameter, in order to have interference)

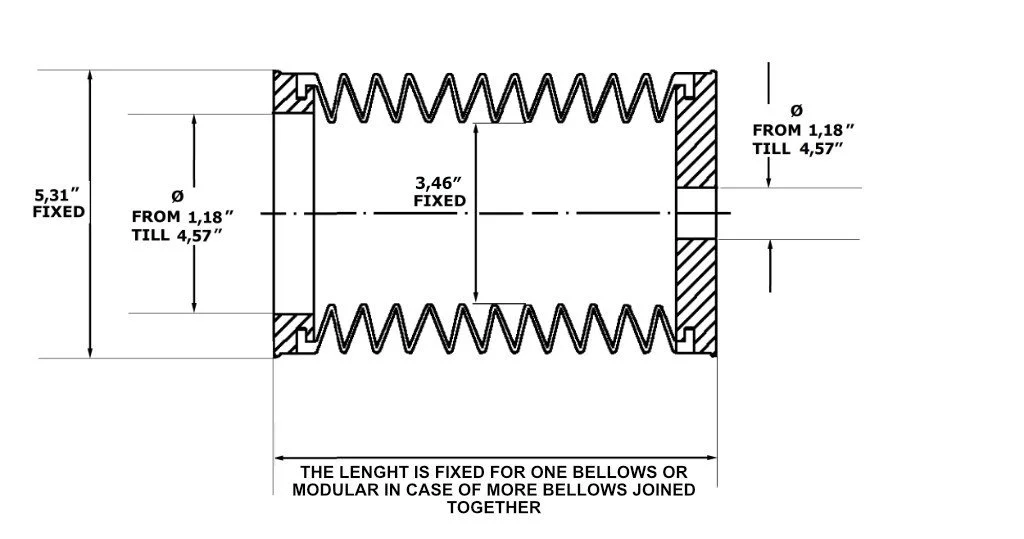

Watch Tutorial Video > Drawing: Bellows > Collar > Joint >
Technical Details
Category X-Large Short - Size from 1.18" to 4.57"
Materials
| Standard | Description | Max Temp. | Color |
|---|---|---|---|
| NBR Rubber | good oil and fairly good exterior resistance | 240° F | BLACK |
| EPDM Rubber | very long outdoor resistance, low oil resistance | 230° F | BLACK |
| Silicone | food grade, high temperatures, long exterior duration | 390° F | ORANGE |
