Category Small - Size from 0.39” to 2.36”
Products Nav > Categories > Small
FIXED LENGHT [Sizes in Inches]:
1 Bellows: L Min 2.56” L Max 13.78”
MODULAR LENGTH [Sizes in Inches]:
2 Bellows Joined: L Min 5.12” L Max 27.56”
3 Bellows Joined: L Min 7.68” L Max 41.34”
And so on (4 Bellows, 5 Bellows...)
MODULAR CONNECTOR SIZE Ø:
DRILL COLLAR’S HOLES FROM 0.39" TO 2.36" AS YOU NEED (0.05 "- 0.08" less than the needed diameter, in order to have interference)

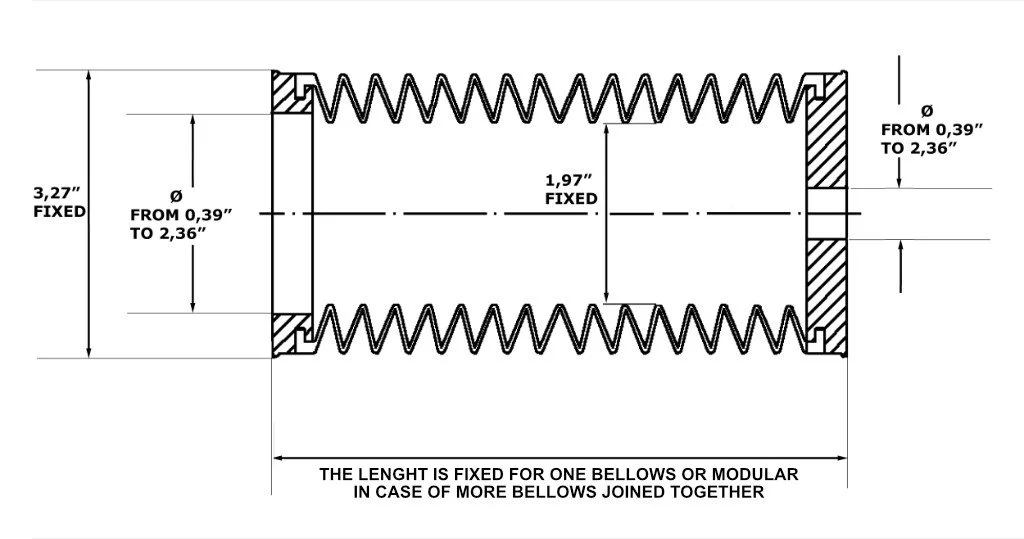

Watch Tutorial Video > Drawing: Bellows > Collar > Joint >
Technical Details
Category Small - Size from 0.39” to 2.36”
Materials
| Standard | Description | Max Temp. | Color |
|---|---|---|---|
| NBR Rubber | good oil and fairly good exterior resistance | 240° F | BLACK |
| EPDM Rubber | very long outdoor resistance, low oil resistance | 230° F | BLACK |
| Silicone | food grade, high temperatures, long exterior duration | 390° F | ORANGE |
Small Products
Bellows small black rubber EPDM (outdoor application).
Modular Rubber Bellows Store
Bellows small black NBR rubber (oil or grease contact).
Modular Rubber Bellows Store
Bellows small orange silicone (food grade, high temperatures).
Modular Rubber Bellows Store
